Inicio /Productos/Máquina de bobina de alambre/Winding Wires Forward Government Skein To Cone Windmill Porcelain

Winding Wires Forward Government Skein To Cone Windmill Porcelain

1 Set
MOQ
Winding Wires Forward Government Skein To Cone Windmill Porcelain
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: HIGH SPEED
Memory Capacity: 999999m
Model Number: TS008P
Voltage: 380v/220v
Power: 90w 50HZ
Dimension(L*W*H): L 13700 x W 1050 x H 1650 mm
Weight: 2400kg
Warranty: 12 Month
After-sales Service Provided: Engineers available to service machinery overseas
Certificación: ISO9001:2008 / CE
Name: TS008P Hank
Información básica
Certificación: ISO9001:2008 / CE
Model Number: TS008P
Pago y Envío Términos
Packaging Details: Standard export cases
Supply Ability: 70 Set/Sets per Month
Descripción de producto

Product Description

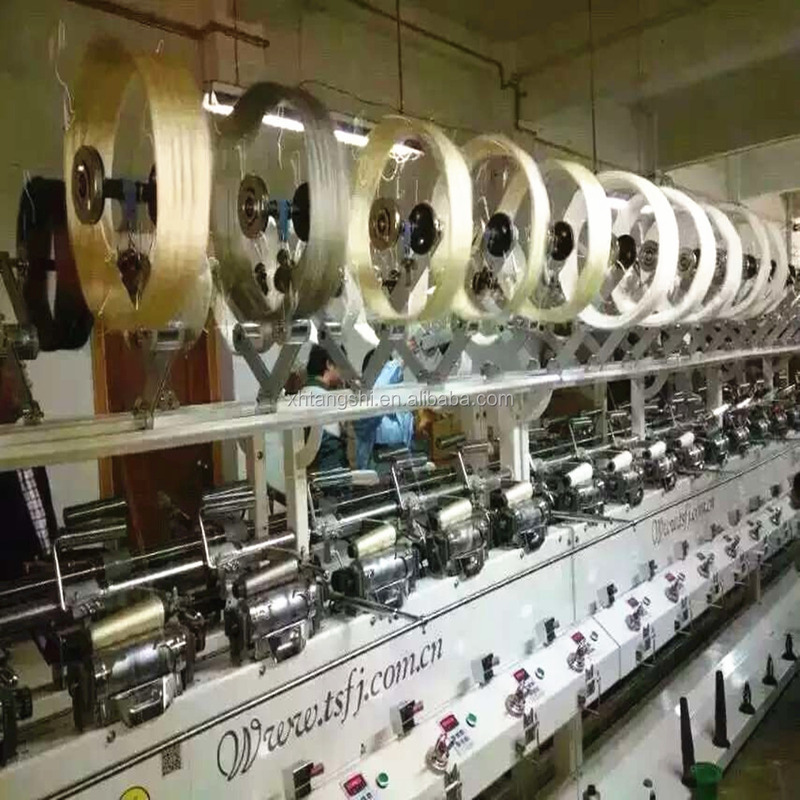

TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..

Feature:

1. Drive: every spindle per motor

2. Winding speed: 300-500 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:

Bobbin type:

6"(170mm)

Layout

Double-side, can be 12-96 spindles

Power Supply

Three phases 380V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Yarn tension and waxing device

Every spindle has a yarn tension and waxing device

Auto Stop Device

Each spindle install auto stop device

Electronic Anti-Stack

Inverter control

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Lighting System

Optional installed

Dimensions

L 13700 x W 1050 x H 1650 mm
