Slider Type Toroid Core Current Transformer Wind Turbine Coil Machinery Repair Shops Large Winder

1.0 Sets
MOQ
Slider Type Toroid Core Current Transformer Wind Turbine Coil Machinery Repair Shops Large Winder
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Showroom Location: United States
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Motor
Condition: New
Voltage: 110~220V
Weight: 94, 94kg
Dimension(L*W*H): 550*500*700CM
Warranty: 1 Year
Wire diameter: 0.12 -0.4mm
Max. final coil O. D: 60 -200mm
Min. final coil I. D.: 20mm
Max. final coil height: 80mm
Max. winding speed: 700 rpm
Supply voltage: AC 220V(50Hz)
Mechanical dimensions: 550*500*700
After Warranty Service: Online support
After-sales Service Provided: Video technical support
Información básica
Pago y Envío Términos
Packaging Details: customs approved wood box for Slider type big toroid core current transformer winding machine
Supply Ability: 8000 Set/Sets per Year Slider type big toroid core current transformer winding machine
Descripción de producto
Product Description

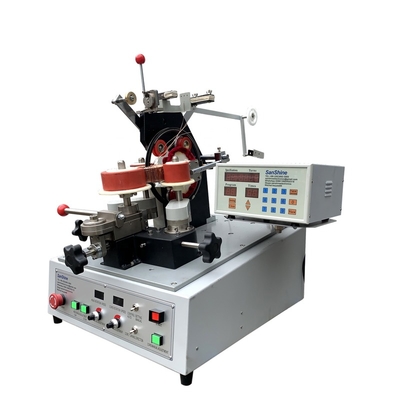

Description of SS300S-04 Slider type big toroid core current transformer winding machine coil winder :
SS300S-04 Slider type big toroid core current transformer winding machine coil winder adopt precision digital toroid controller and the slider type winding shuttle, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with fine wire, toroidal transformer with fine wire, toroidal current transformer with fine wire, toroidal coil with fine wire , toroid chock coil, power inductors, power magnetics, UPS inductor with fine wire, converter inductors with fine wire, heavy toroidal core with fine wire coils,etc.

Features of SS300S-04 Slider type big toroid core current transformer winding machine coil winder :
1. Collocate the slider type winding head to wind fine wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires,turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300S Series slider type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.

SS300S series slider type fine wire automatic big heavy toroid coil winding machine

Specification of each model :
Model
SS-300S-04
Wire diameter
0.12 -0.4mm
Max. winding speed
700 rpm
Max. final coil O. D.
Φ 60 -200mm
Wire spacing
stepping motor control
Min. final coil I. D.
Φ20mm
Supply voltage
AC 220V(50Hz)
Max. final coil height
80mm
Mechanical dimensions
550*500*700
Controller storage capacity programs
29(set)
Weight
94kg
Related Products
Packing&Shipping
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Our customers
Working shop
Our Services & Strength
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
FAQ
How to select the best suited Toroidal current transformer coil winderfor your toroid coil,
Tell us your toroidal coil of data as below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
