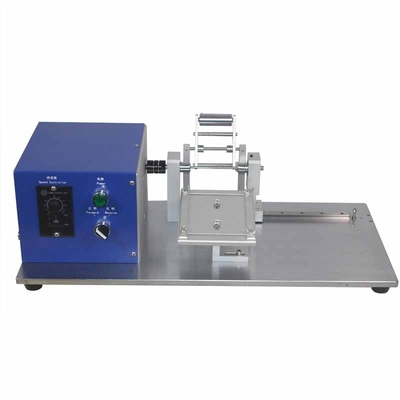

18650 26650 32650 Laboratory Winding Machine Winder for Cylindrical Battery Electrode
Features
LITH-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.
1.High precision bearing, improving the precision of the electric core winding.
2.Used for cyclinder and prismatic lithium battery electric core manual winding.
3.Winding speed is adjustable, can be positive and negative sides, conveniently operation.
Specifications
Working Voltage |
220VAC 50/60Hz |
Max. Power Consumption |
25W |
Winding Speed |
0-170 RPM Adjustable |
Winding Blade for pouch cells |
1. Dimensions: (20-90)mm(L) x (15-60)mm(W), specially designed for winding pouch cells 2. The winding width depends on the width of the winding blade.If other size is needed please contact us for customization |
Winding Shaft for cylinder cells |
1. Dimensions: 4mm(OD) x 65mm(L) for 18650, 26650, 32650 cylinder battery core |
Warranty |
One year limited manufacturer warranty with lifetime support. |
Dimensions of Machine |
L550mm*310mm*280mm |
Winding mode |
Switchable between clockwise and counterclockwise |
Compliance |
CE Certified |
Net Weight |
25kg |
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
